What Plugs Where

A big table analysing workflows available online to take note of which embeds node can be used with which model (.safetensors). Very similar workflows apply both to VACE 2.1 and Wan 2.2 Fun Vace.

VACE

To do vace inpainting before you need masks set but also the mask reflected on the input at 127 gray

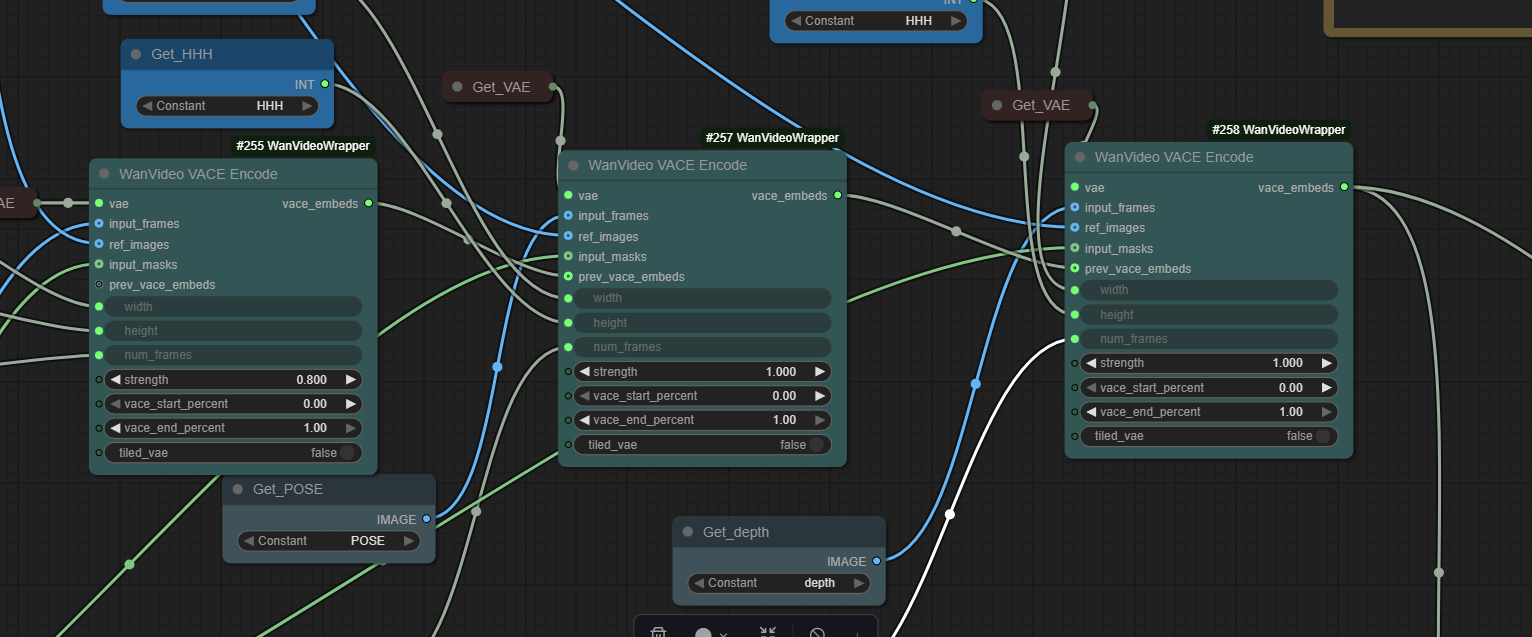

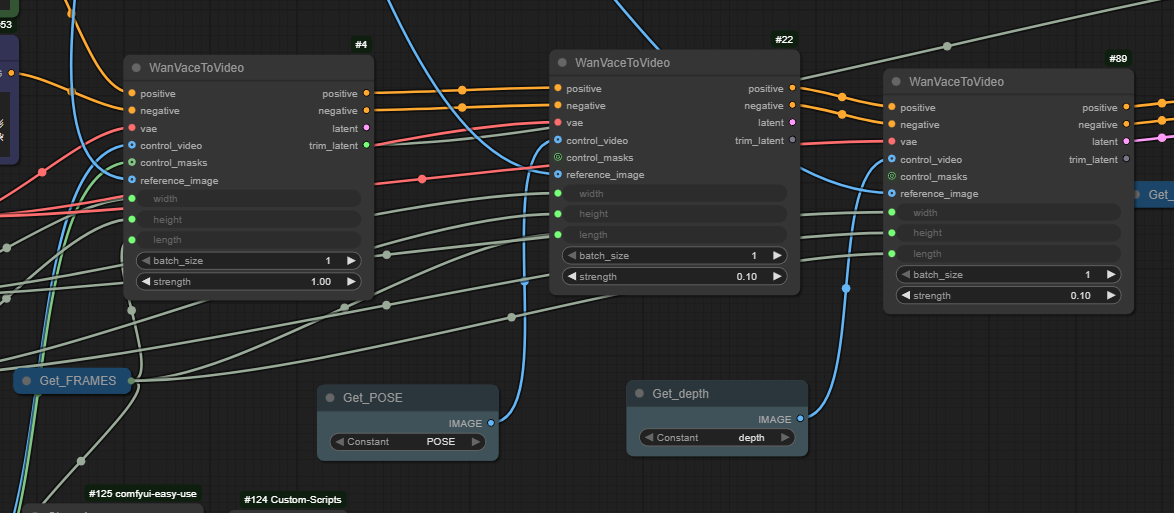

VACE accepts more than one control video. To do this chain multiple VACE embeds nodes: native, wrapper.

To give WAN more creative freedom while still using VACE set vace_end_percent to less than 1. This will allow final steps to do sampling without VACE control after VACE has established overall shape of the video. Presently exposed on wrapper node but not on native node.

Native

VACE kijai/ComfyUI-KJNodes

Diffusion Model Selector (VACE safetensors; -> extra_state_dict input of Diffusion Model Loader KJ)
Diffusion Model Loader KJ (Wan 2.2 .. T2V ..)
LoraLoaderModelOnly (some speed lora; can chain after the above)

Supplementary; chain after model loader

TorchCompileModelWanVideo
Patch Sage Attention KJ

Embeds In Native

Embeds Node	Inputs	Model	Bonuses
`WanVaceToVideo`	`control_video`, `masks`, `ref_image`, `pos/neg`	VACE + Wan	`trim_latent` from `WanVaceToVideo` to `TrimLatentNode`

This embeds node gives both ref_image and control_video the same strength; Kijai: “it’s overall strength of the VACE conditioning”.

Bonus nodes: Create Video, Save Video, Points Editor, (Down)Load SAM2Model, Sam2Segmentation, GrowMask, Preview Animation, Empty Image (color 8421504), ImageComposeMask.

Not entirely clear if inpainted area needs to be gray-ed out in control video input to WanVaceToVideo

Wrapper

VACE kijai/ComfyUI-WanVideoWrapper

WanVideo VACE Module Select (Wan2_2_Fun_VACE..; -> vace_input of VanVideo Model Loader)
WanVideo Lora Select Multi (say lightx2v_T2V_14B_ .. v2..; -> lora input of VanVideo Model Loader)
WanVideo Model Loader (Wan 2.2 .. T2V ..)

Supplementary

WanVideo VAE Loader
WanVideo Torch Compile Settings (-> compile_args input of WanVideo Model Loader)
WanVideo Set Block Swap (chain after WanVideo Model Loader)
WanVideo Lora Block Edit (switching off block 0 might help remove 1st frame flash)
WanVideo Text Encoder Cached (avoid re-running text encoding on each execution, free up a little VRAM)
WanVideo RoPE Function (check tooltip on rope_function in WanVideoSampler; see also: RoPE)

Least WanVideo Sampler node grows visually too tall groups of parameters have been placed into their own nodes:

WanVideo Context Options -> context_options input; details

Embeds In Wrapper

Pre Embeds Node	Pre Embeds Inputs -> Output	Embeds Node	Input from Pre / Embeds Inputs -> Output	Model	WanVideo Sampler Input
-	-	`WanVideo VACE Encode`	/ `input_frames`, `input_masks`, `ref_images` -> `vace_embeds`	VACE + Wan T2V family	`image_embeds`
-	-	`WanVideo ImageToVideo Encode`	/ `start_image`, `end_image`, `control_embeds`?, `temporal_mask`?, `extra_latents`, `add_cond_latents`? -> `image_embeds`	Wan I2V family	`image_embeds`
-	-	`Multi/Infinite Talk Wav2vec Embeds`	`wav2vec_model`, …	Wan 2.1 I2V family	`image_embeds`

Note: ? denotes parts which are not clear enough.

WanVideo VACE Start To End Frame

inputs: start_image, end_image, num_frames, control_images (for depth, pose, combined depth/pose etc), and inpaint_mask
outputs: images, masks

Can be used to prepare input_frames for WanVideo VACE Encode. Both start_image and end_image can be sequences of say 10 nodes.

Bonus nodes:

Solid Mask
Repeat Masks

More bounuses:

Image Preview
Mask Preview

Wiring

WanVideo VACE Start To End Frame --------------------> | Replace Images  |
                                                       | In Batch        | --> Preview Image,
LoadImage  ---> ResizeImage ---> RepeatImageBatch ---> |                 |     WanVideo VACE Encode --> ..
                                                       |                 |
SolidMask  ---> RepeatMask --------------------------> |                 |

Video Continuation Generator

Video Continuation Generator from banodoco/Steerable-Motion can be used instead of WanVideo Start To End Frame to prepare input for WanVideo VACE Encode.

Drozbay’s WanVaceAdvanced

Drozbay’s WanVaceAdvanced nodes for advanced Wan + VACE generation) nodes, sample workflow

Misc

Points Editor from kijai/ComfyUI-KJNodes used in workflows utilizing Sam2 for segmentation.
Rope Function Node from kijai/ComfyUI-WanVideoWrapper - mysterious but holds promise.
Get Image From Batch Indexed from kijai/ComfyUI-KJNodes to get several last frames from previous generation for VACE / I2V extensions

Masks

Here is a slightly non-traditional way to build masks. Please note that actual value 0 vs 1 may be opposite between wrapper and native workflows.
