Sigmas

2025.12.13 Part A

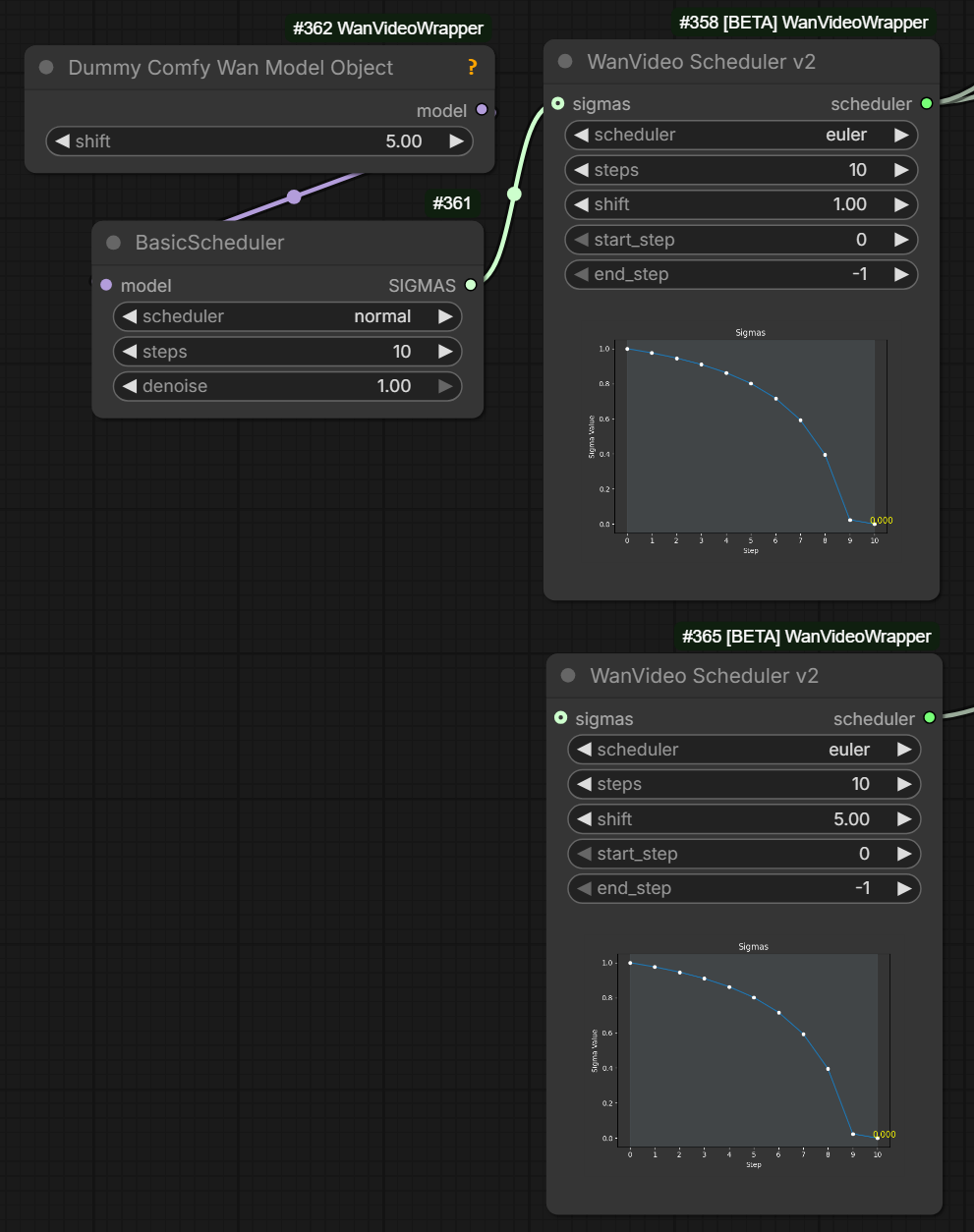

Kijai is preparing V2 series of nodes for ComfyUI. Here’s a peek preview of WanVideo Scheduler v2:

scheduler-v2

Note that top scheduler on this image has got sigma schedule coming via sigmas noodle input from native nodes on the left completely overriding the sigma schedule that WanVideo Scheduler v2 would have computed from its own settings.

In the image the setting match but that doesn’t matter. Apparently this is a standard behavior in ComfyUI. For exampple in ClownShark sampler sigma schedule coming via noodles overrides settings on the node in the same way.

With this knowlege one can appreciate that the image actually shows a comparison between

the sigma schedule generated by BasicScheduler for “euler/normal” with 10 steps and a shift of 5.0 (top of the image, other native nodes behave the same way)
the sigma schedule generated by WanVideo Scheduler v2 for euler with 10 steps and a shift of 5.0 (bottom of the image, other Wrapper nodes behave the same way)

As you can see both are identical. WanVideo Scheduler v2’s ability to visualize the sigma schedule on a chart is very handy.

Comment on an intrinsic link between sampler (“euler”) and schedule (“normal”):

from an ODE solving perspective separating sampler and scheduler makes no sense; it’s like you have a very timing sensitive algorithm And then you separate the timing control out

What this means is that algorith and sigma schedule (sampler/scheduler) need to be always setup in a coherent manner. Some of the nodes WanVideo Scheduler v2 being one of them and ClownShark nodes the other set both together, as actually does Automatic111 UI.

This even leads to a terminological mixup between these two terms with “scheduler” and “sampler” sometimes used almost interchangeably to refer to the same thing.

2025.12.13 Part B

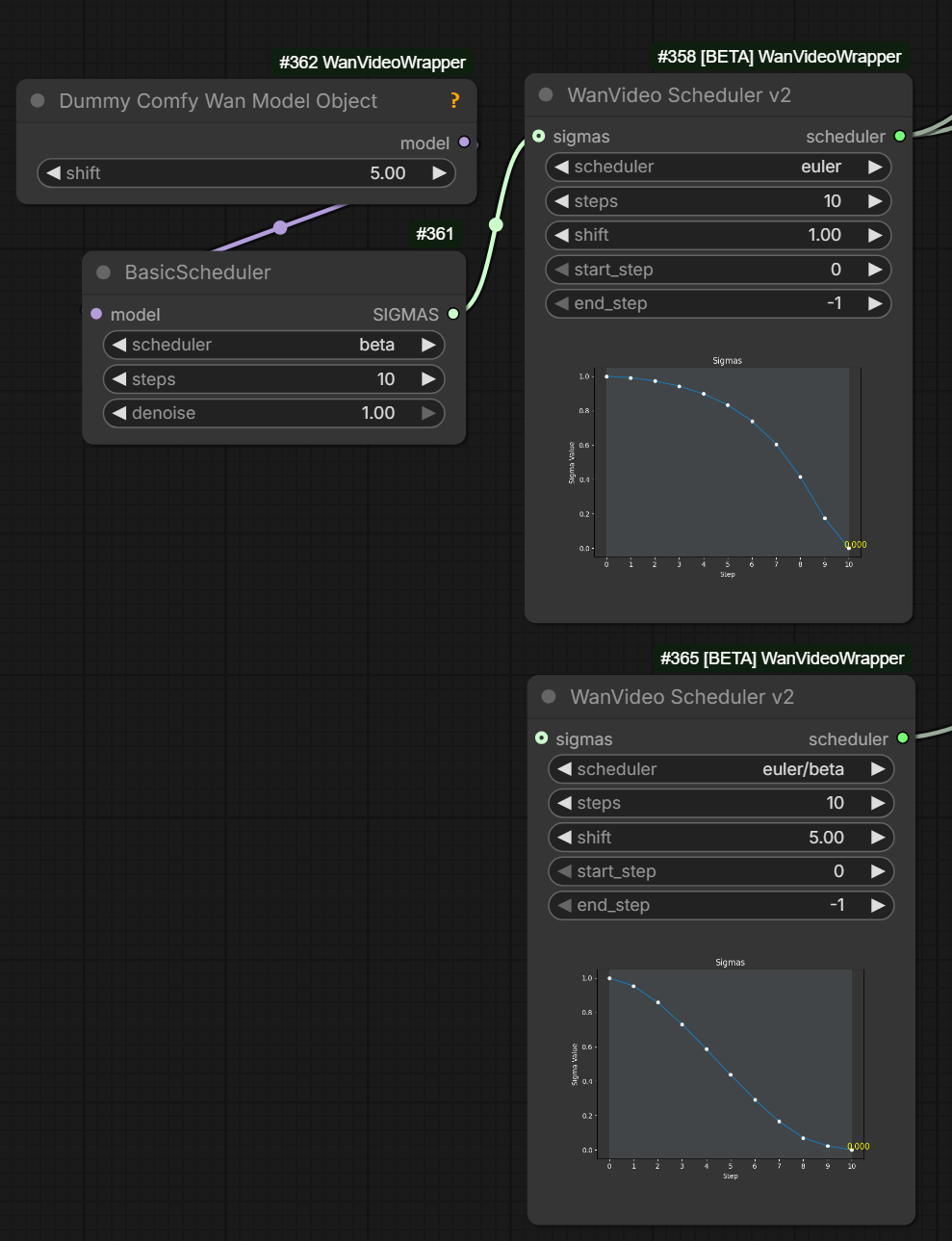

Scheduler “beta” works very differently in Wrapper and in Native

in diffusers [and in wrapper?] beta sigmas are applied after shift, while in comfy it’s other way around

scheduler-beta

Intro

What the hell is a sigma schedule?!

Nodes For Working With Sigmas In Kijai’s Wrapper

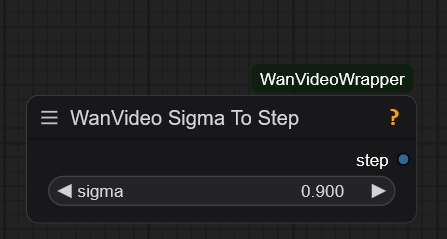

WanVideo Sigma To Step

sigma-to-step

WanVideo Sigma To Step is a slightly confusing node. It allows you to set a floating point value on the node itself such as 0.9 or 0.875. The value then becomes availabe on node’s output. However that output is intentionally “mislabelled” as being an integer. This allows you to plug it into end_step on WanVideo Sampler. WanVideo Sampler is coded to detect this kind of “mislabelling” and behave in a special manner in response: it then converts the floating value it received into an appropriate end_step number.

This kind of automated end_step computation is mostly useful when the number of steps is large, e.g. when sampling without lightx LoRA-s. If you are using lightx or similar LoRA-s you typically know in advance that you’re going to perform 2 + 2 or 3 + 3 or possibly 4 + 4 steps. You still want to make sure that the switchover from high to low noise sampler happens at the correct sigma but your main control to achieve that then is your shift.

WanVideo Sigma To Step + WanVideo Scheduler

If you additionally want to plot your sigma schedule on a chart and have the computed end_step marked there you can assembly the following sequence of nodes (note that you need to convert end_step control to a “noodle” input on WanVideo Scheduler):

WanVideo Sigma To Step
      |
      v
WanVideo Scheduler
      |
      v
Preview Any

The reason this works is because there is some additional magic in the code related to intentional “mislabelling” of floating sigma value as an integer:

if WanVideo Scheduler receives a float instead of an integer as end_step it just passes it through and outputs same floating point number
WanVideo Sampler then interprets it same way as if WanVideo Step To Sigma was plugged into it directly

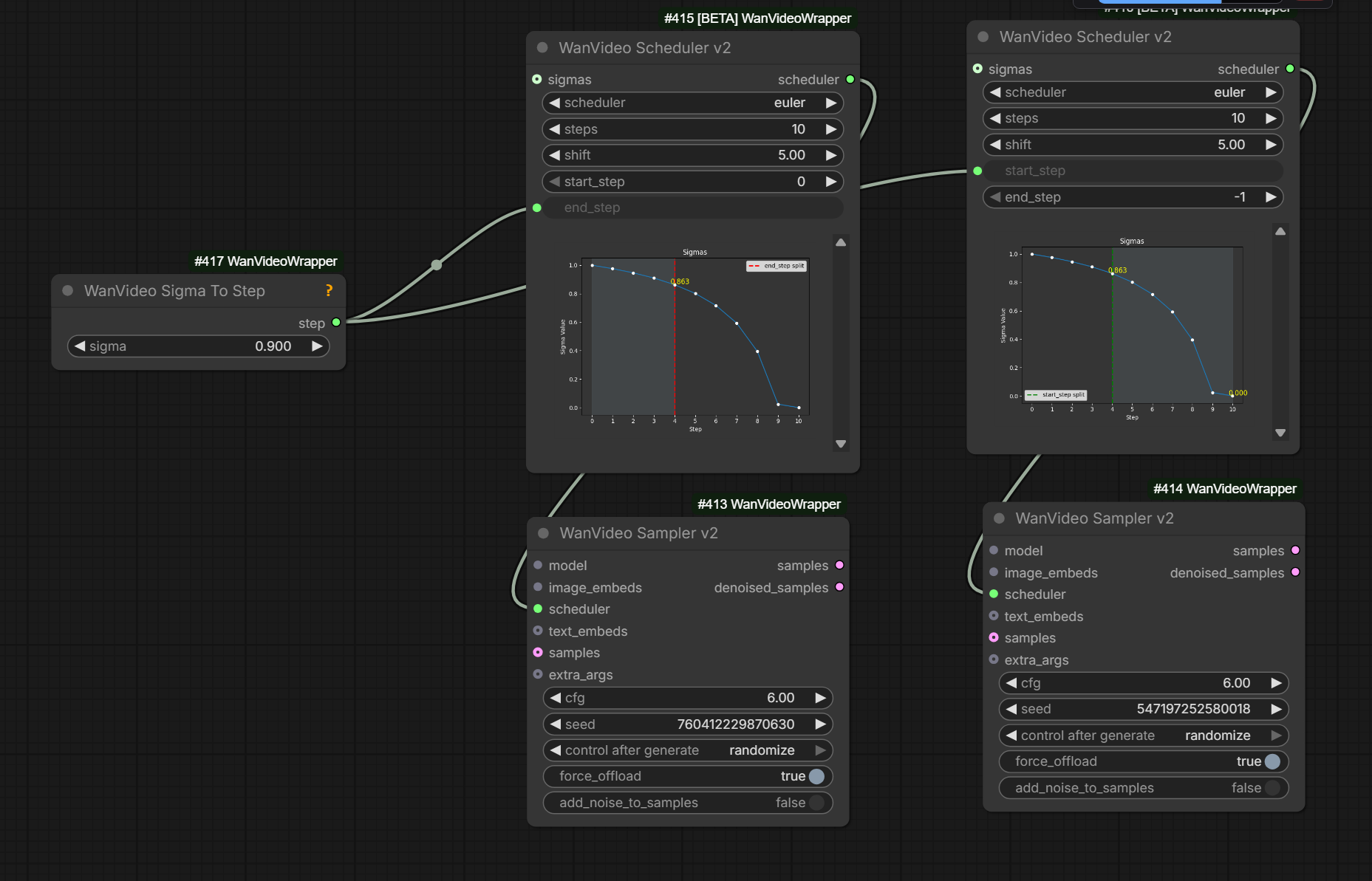

Bonus: WanVideo Sigma To Step with V2 nodes: sigma-to-step-with-v2.

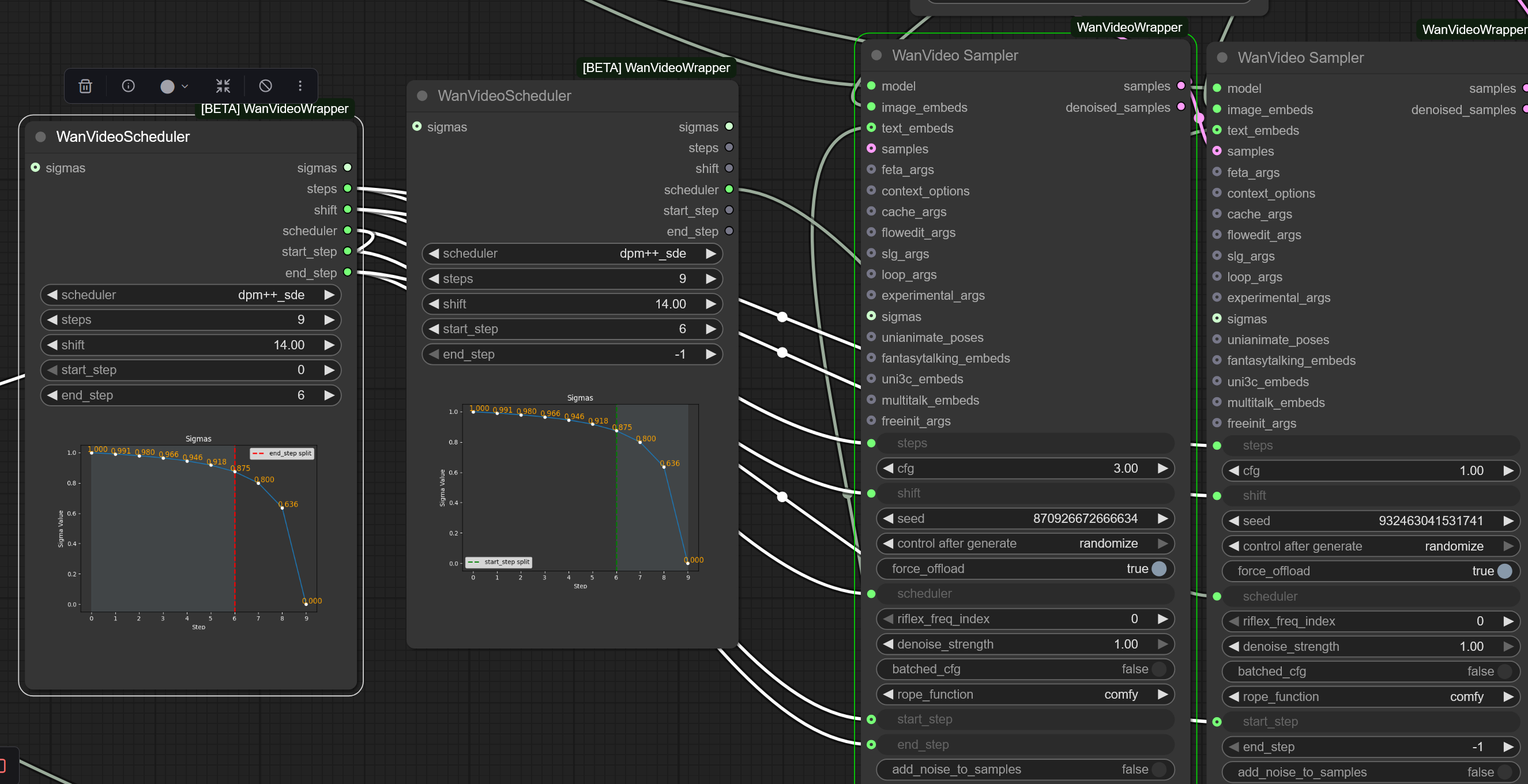

Wiring two `WanVideo Scheduler`-s into two `WanVideo Scheduler`-s for Wan 2.2

schedulers

Explanation about WanVideo Scheduler:

you only need to connect the scheduler output, rest aren’t even used but are there so you can connect them to the sampler to indicate those all are controlled by the scheduler node

Native Nodes For Working With Sigmas

Basic Scheduler
Sigmas Split Value
Custom Sampler Advanced

Other nodes you will likely see in the same workflow are

ModelSamplingSD3 - change shift
KSamplerSelect
CFGGuider - split out inputs for Custom Sampler Advanced: model, positive, negative, cfg
RandomNoise - noise input for 1st WAN 2.2 sampler
DisableNoise - noise input for 2nd WAN 2.2 sampler

Note: model input on Basic Scheduler in Kijai’s words

just tells the scheduler that this is flow match model, so any wan model will do

E.g. one Basic Scheduler/Sigmas Split Value can drive two Custom Sampler Advanced nodes with diff models.

Can plug Dummy Comfy Wan Model Object -> WanVideo Scheduler -> WanVideo Sampler. Then Dummy Comfy Wan Model Object sets shift. One way to configure linear quadratic.

Wan 2.2 Switchover

Advice on switching from hight noise to low noise model with WAN 2.2

Model Type	Switchover Sigma
I2V	0.9
T2V	0.875

Other Useful Nodes

String To Float List -> Float To Sigmas facility to specify sigmas directly, can start with a string like 1.0, 0.9375, 0.833333, 0.625, 0.000
Create CFG Schedule Float List - not sigma but often set in the same part of workflow.
Preview Any - easy to way to check output from the two above mentioned nodes
Get Sigma from GH:BlenderNeko/ComfyUI_Noise
BetaSamplingScheduler more control over Beta sigma schedule
